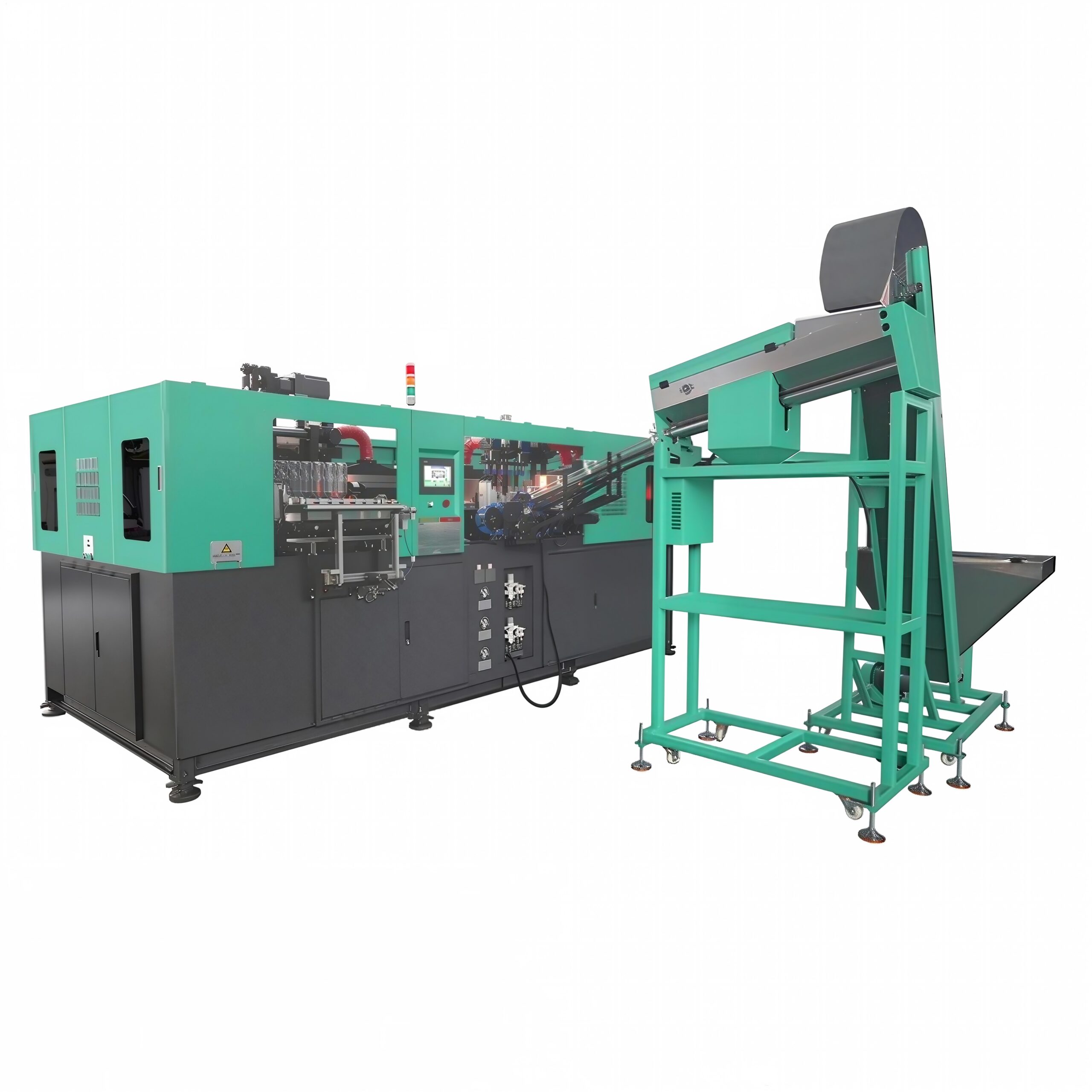

Our 3-cavity PET fully automatic bottle blowing machine series is designed for 100-600ml PET bottles. Simple and high-speed bottle blow molding for still drinks, CSD, oil, cosmetics, and pharmaceuticals. As a one-stop PET preform & blow molding machine manufacturer, we provide you with professional after-sales support and matching preforms.
Easy Handle
Comes with a touch screen and a simple operating system; you can put this machine in your factory with no difficulty in a short time.
Energy Efficient
We apply a high-end servomotor to this machine series, more durable & stable while saving on energy consumption by 20%.
High-Quality Bottle Blow Molding
Designed with a stable & high-speed clamping system and high-pressure stretch & seal system. Ensuring the bottle’s high quality, with no joint line, no thick or thin spots.
High-Speed Manufacture
Equipped with a fast and smooth preform feeding line, avoiding preform jamming. Easy-to-adjust air valves can help workers switch to different bottle sizes easily.
Independent Cooling System
This powerful high-flow air/water cooling system can secure bottle necks, so they don’t deform or leak later. Quick cooling gives faster bottle release.
| Cavity | Bottle Volume Range | Bottle Neck Diameter | Max. Bottle Size (Diameter × Height) | Output (Bottles Per Hour) | Machine Dimension | Machine Weight |
|---|---|---|---|---|---|---|
| 3 | 100-600ml | 20-38mm | 70 x 250mm | 4000 - 4500 | 3.2 x 2 x 2.2m | 3500kg |
What after-sales support is provided with the PET blow molding machine?
We provide online technical support, including installation guidance, operator training, troubleshooting assistance, and spare parts supply. If required, our professional engineer can go to your location for site guidance.
What's the lead time of this blow molding machine?
Normally, a blow molding machine can be ready for shipping in around 30 working days after the drawing is confirmed. Global shipping.
Can I customize the PET bottle design and mold for this machine?
Yes. We provide customized mold development services based on your bottle drawings and 3D models. The mold can be customized for bottle shape, capacity, logo, surface texture, and special structural requirements.
Can this PET blow molding machine produce lightweight PET bottles?
Yes. The machine can be optimized for lightweight bottle production through precise heating control, optimized stretching ratios, and customized blowing parameters while maintaining bottle strength and performance.
Can the machine work with recycled PET (rPET) preforms?
Yes. The PET blow molding machine can be adapted for rPET applications. Process parameters can be adjusted to achieve stable bottle quality, including proper transparency, strength, and dimensional accuracy.
Bottle & Mold System
Stretch Blow Molding System
Heating Sector
Automation System
Control System
Material Compatibility
Production Line Integration
Hot-Filling Customize
Still Drinks
Mineral Water
CSD
Oil
Condiments
Self-care
Cosmetics
Household
Pharmaceuticals
Wine
Beer
